The SGGX microflake distribution

Eric Heitz ; Jonathan Dupuy ; Cyril Crassin ; Carsten Dachsbacher

(article)

Abstract

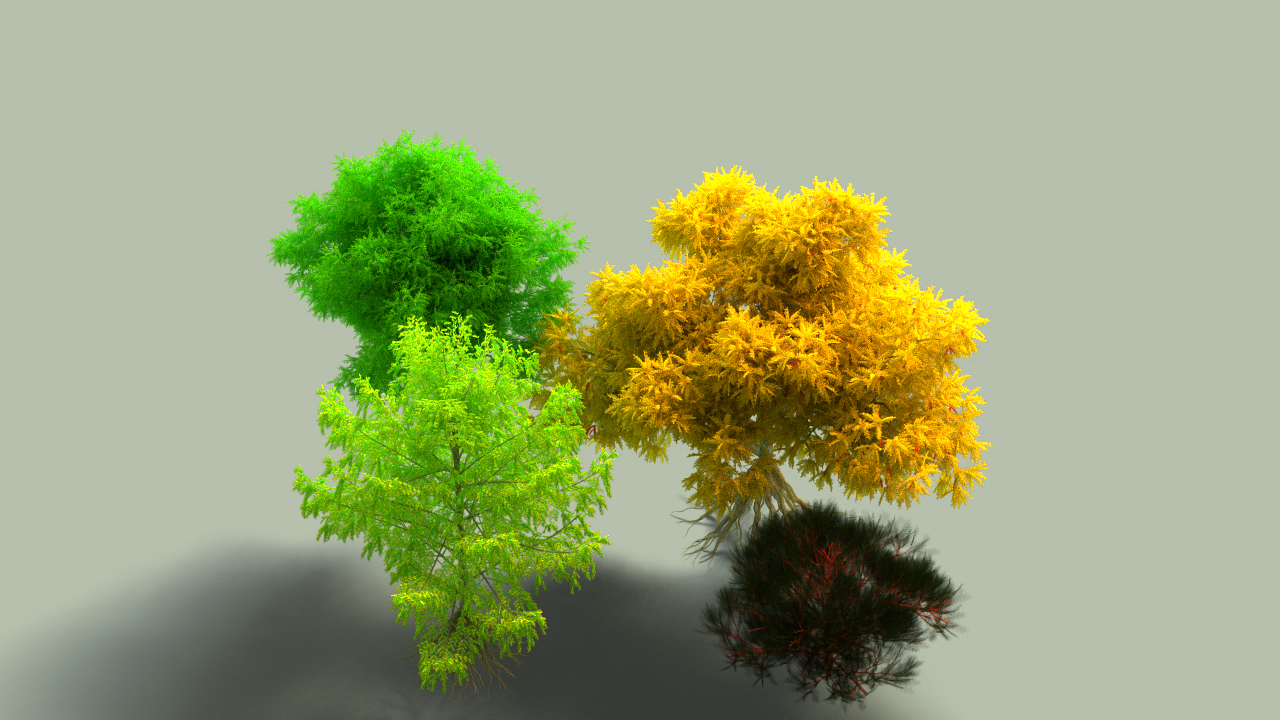

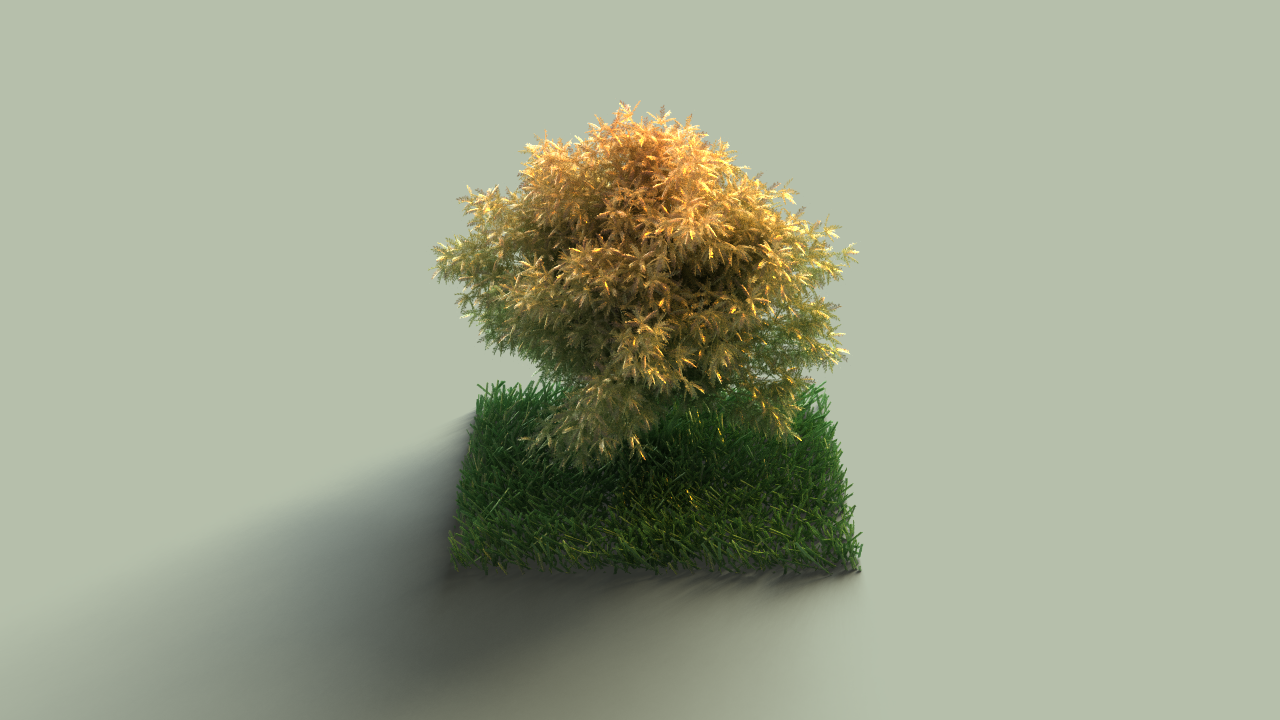

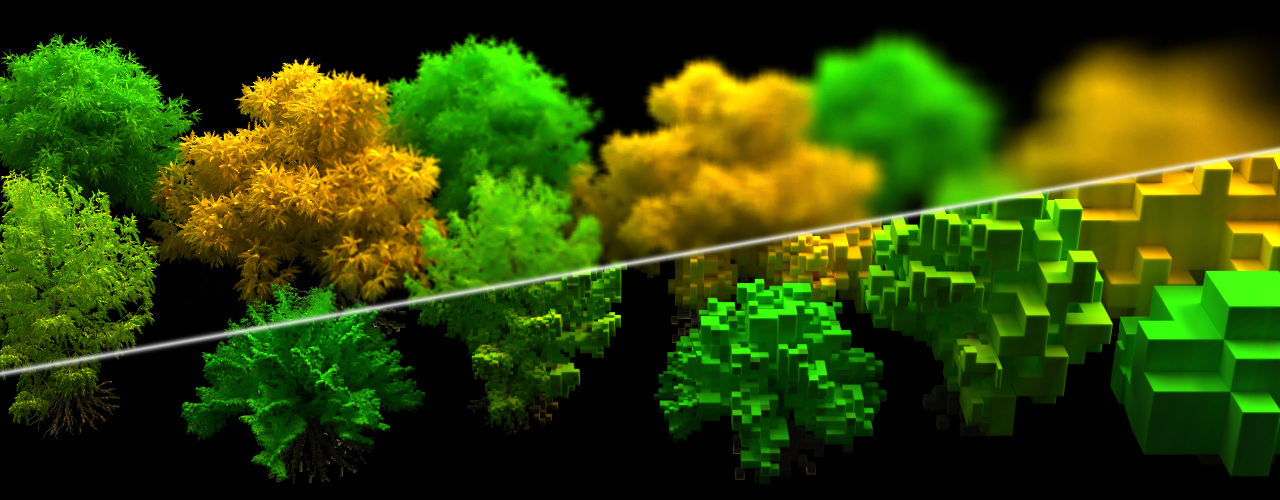

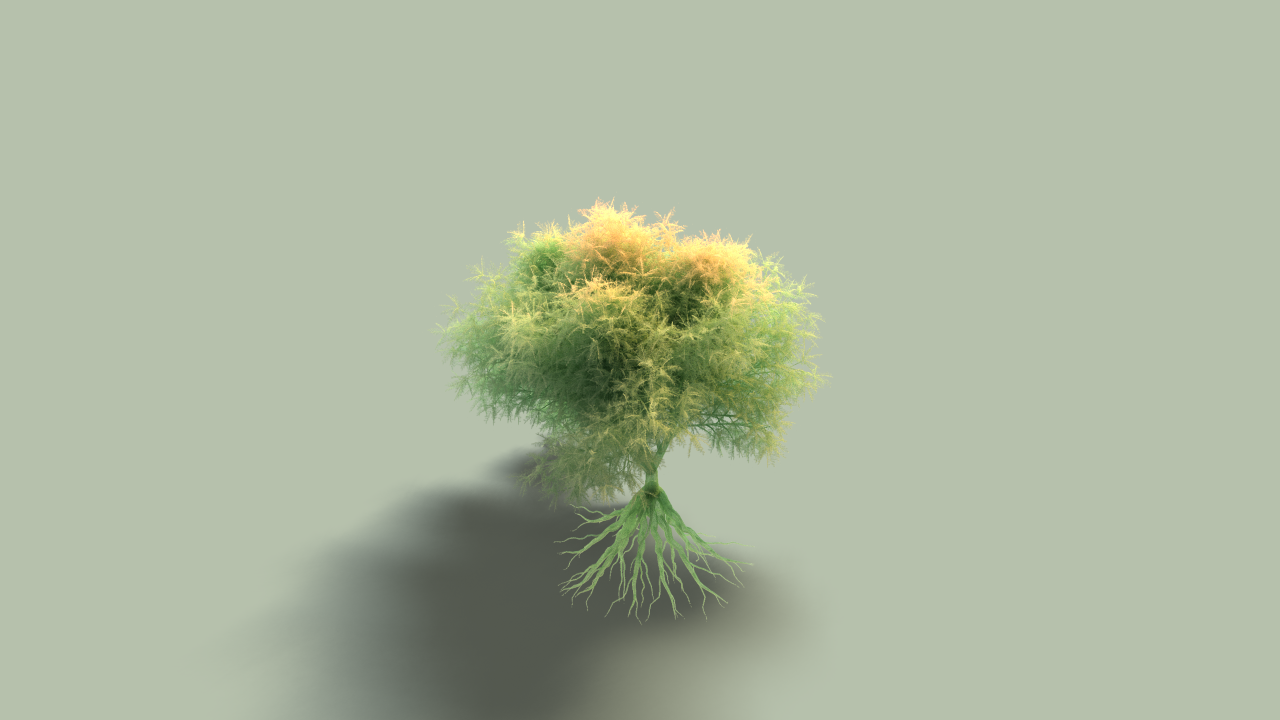

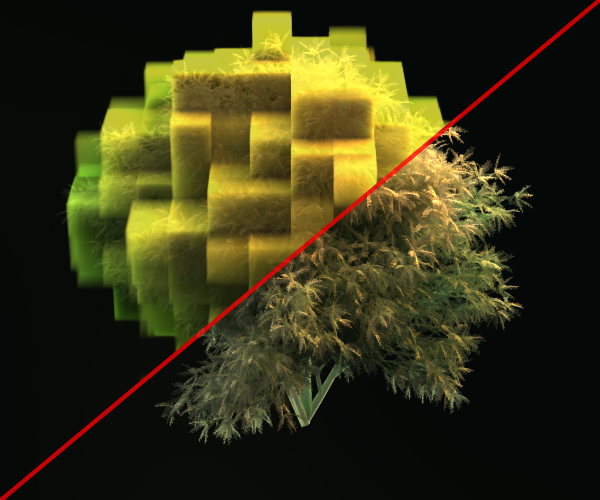

We introduce the Symmetric GGX (SGGX) distribution to represent spatially-varying properties of anisotropic microflake participating media. Our key theoretical insight is to represent a microflake distribution by the projected area of the microflakes. We use the projected area to parameterize the shape of an ellipsoid, from which we recover a distribution of normals. The representation based on the projected area allows for robust linear interpolation and prefiltering, and thanks to its geometric interpretation, we derive closed form expressions for all operations used in the microflake framework. We also incorporate microflakes with diffuse reflectance in our theoretical framework. This allows us to model the appearance of rough diffuse materials in addition to rough specular materials. Finally, we use the idea of sampling the distribution of visible normals to design a perfect importance sampling technique for our SGGX microflake phase functions. It is analytic, deterministic, simple to implement, and one order of magnitude faster than previous work.

Video

BibTex references

@article{HDCD15,
author = {Eric Heitz and Jonathan Dupuy and Cyril Crassin and Carsten Dachsbacher},
title = {The SGGX microflake distribution},
url = {https://research.nvidia.com/sites/default/files/pubs/2015-08_The-SGGX-microflake/sggx.pdf, Paper authors version},
year = {2015},
date = {2015-08-01},
journal = {ACM Transactions on Graphics (TOG) - Proceedings of ACM SIGGRAPH 2015},
}


Tags: , , ,
